DEC2687 – OPNsense® Desktop Security Appliance + 1 Jahr Lizenz

DEC2600 Series – OPNsense® Desktop Security Appliance + 1 Jahr Lizenz

DEC2687 – OPNsense® Desktop Security Appliance + 1 Jahr Lizenz

Name: DEC2687 – OPNsense® Desktop Security Appliance + 1 Jahr Lizenz
SKU: DEC2687
Price: 918.0 EUR

excl. MwSt: 918,00 € *

inkl. MwSt:

In den Warenkorb

Auf die Wunschliste

OpnSense

7 Produkte

OpnSense

Kategorie: Firewall, Sicherheitslösungen

Bezahlen Sie mit

Geschäftsbedingungen

Kostenlose Lieferung Donnerstag, 11. Dezember bei Ihrer ersten Bestellung.

DEC2600 Series: DEC2687

Spezifikationen

DEC2600 Series

DEC2687

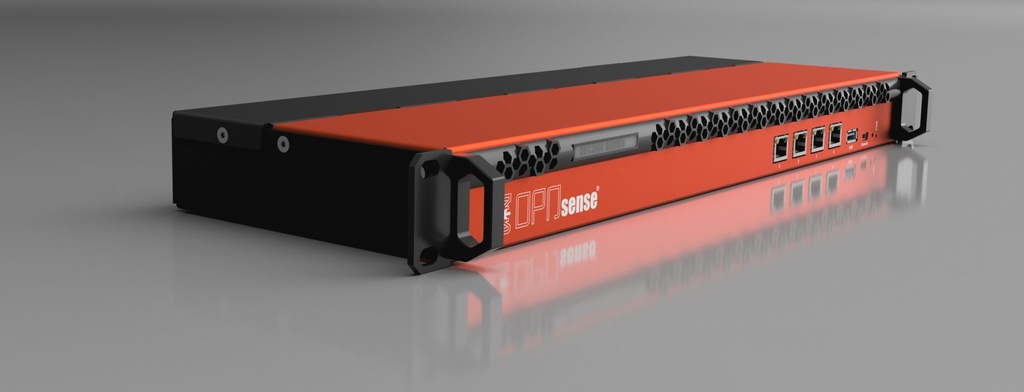

DEC2687 2.5GbE OPNsense® Rack Security Appliance

Full specifications

Models

DEC2687

Software

Preinstalled software

OPNsense®

License

Open Source + 1 year free Business Edition

Hardware Specifications

Typical Applications

Firewall / Routing, VPN, IDPS & Webproxy

GbE RJ45 Ports [ 100/1000/2500Mbps ]

USB Ports

Console Port

Internal Storage

256GB Solid State Flash

Memory

8GB DDR3

CPU Cores

4 (max frequency 1.8Ghz)

Virtual Interfaces (802.1q VLANS)¹

4093

System Performance

Firewall Throughput

5000Mbps

Firewall Packets Per Second

420Kpps

Firewall Port to Port Throughput

2.3 Gbps

Firewall Port to Port Packets Per Second

195Kpps

Concurrent Sessions

7000000

Connections Per Second

35000

Firewall Latency (RTT)

125us

Firewall Policies (Recommended Maximum)¹

10000

IPsec VPN Throughput (AES256GCM16)

600Mbps

IPsec VPN Packet Per Second (AES256GCM16)

50Kpps

Threat Protection Throughput Packet Per Second

50Kpps

Threat Protection Throughput

~540Mbps

High Availability with State Synchronisation

Requires Two

Dimensions

Height x Width x Length (mm)

43.8 (1U) x 482.6 (19") x 153 (excl. handles)

Height x Width x Length (inches)

1.73 (1U)x 19 x 6.03

Form Factor

19" Rack mountable

Weight

2.1Kg

Environment

Power Requirements

100-240VAC, 50-60Hz

Maximum Current (AC)

0.8A

Power Consumption (Typical)

13W

Heat Dissipation

44 BTU/hr

Operating Temperature

0 to +45°C

Storage Temperature

-20 to +70°C

Humidity

10-90% non-condensing

Regulatory Compliance

FCC part 15 Class A, CE, Rohs

¹The user interface is designed for normal business usage, large rulesets, high number of users or interface assignments may be less practical. All measurements are based upon TCP traffic unless stated otherwise. Maximum PPS is a peak performance, measured using 500 byte packets.Firewall Portto Port package per seconds is the peak performance when using 1500 byte sized packages. Total Firewall Throughput is calculated by multiplying the maximum packets per second with a standard package size of 1500bytes. IPS performance is measured with aproximately 35000 rules enabled. IPsec VPN is measured using AES256GCM16+SHA512. Concurrent sessions are based upon memory available, where one state consumes 1KB of memory and 1GB of memory is reserved for system tasks. Latency is measured using netperf.
